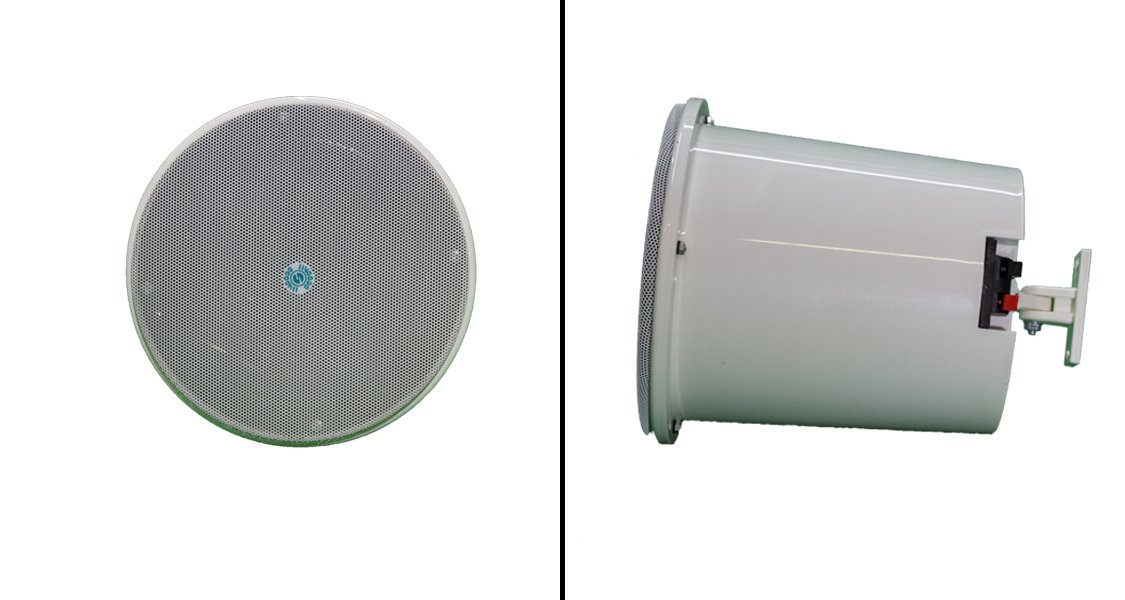

SSL 902 Cylinder Speaker

zoomable
  • General Features
  • Technical Specifications

In facilities with high ceilings and space roof construction, it is mounted with clamps or screwed to cable trays.

Rod lengths can be adjusted. The body is made of ABS and the rods are made of aluminum.

Speaker power and angles are selected and manufactured according to the height from the ceiling to the floor. It has a decorative design.

The loudspeaker is located in a cylinder type acoustic cell, so that the loudspeaker is sound sealed and the sound is soundproofed, acoustic phenomena and ringing will be eliminated. The inside of the loudspeaker box shall be free from dust and

finished with a cylindrical shaped louver to prevent For installation in cable trays on the ceiling also available with apparatus.



* ABS and imported ferfore sheet protection louvered

* Electrostatic painted in desired color

* 200mm full range type speaker

* Line transformer in accordance with world standards

Speaker Power; Max 100W 100W/10W
Medicine; On Plaster - type wall mounted
Output Impedance; 8 ohm/1-1.5-2-5kohm 100V System
rated power; 10W/100V
                                                     1kohm/15W
                                                     1.5kohm/10W
                                                     2kohm/6W
                                                     5kohm/4W
Speaker Frequency band; 80Hz-18kHz
Sensibility; 99dB (1m/1W)
Max. Sound Pressure; 105 dB (1m/max. power)
Speaker diameter; 200mm
Mounting Foot; 100mm
Cylinder Diameter; 220mm
Cylinder Height; 215mm
Mounting method; Sheet metal screw mounted with hanger on the plaster
