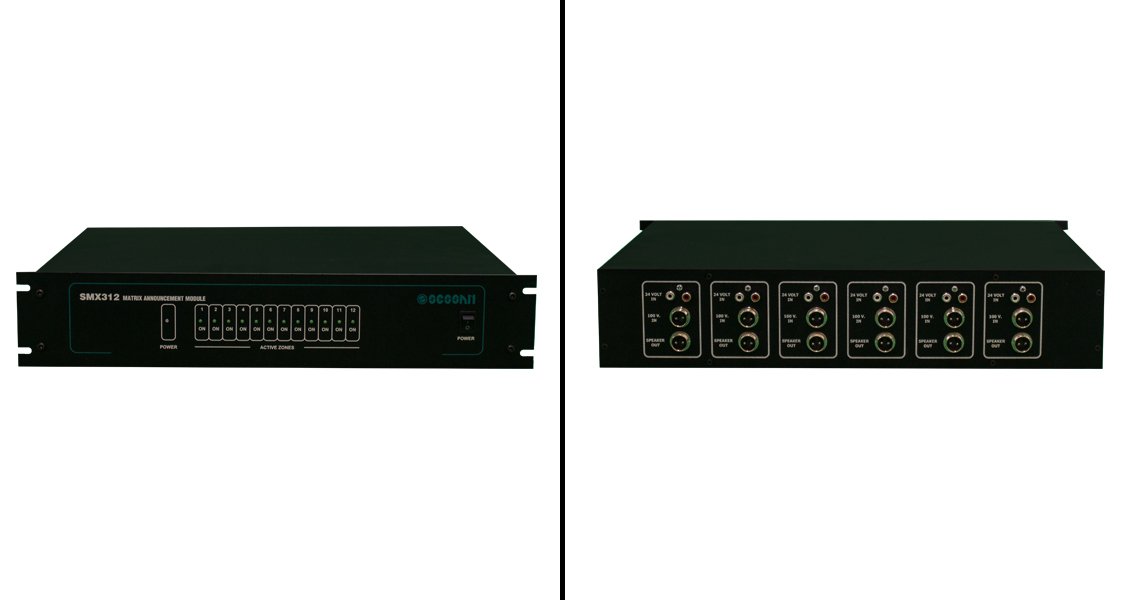

SMX 312 Matriks Anons Kontrol Modül

zoomable
  • General Features
  • Technical Specifications
*Full digital design
*Touch-controlled announcement broadcast to 12 zones
*Touch Volume Control with 3 microphone inputs
*Special gong feature before the announcement
*Anons Bass-terble controlled
*Gong test button

* Girişler;     2 mic 600ohm, 1mV (60dB)
                    2 Line input 500kohm, 100mV
* Ton Kontrol; Bass 10dB,100Hz
* Çıkış seviyesi; 25ohm, 750mV
* BeslemeGerilimi (AC) 200-240v / 50-60Hz
* Besleme Gerilimi (DC) 12V,24V 50-60Hz
* Ebat; 125x274x480 mm
* Ağırlık; 7kg

In Rack systems, announcement control with a special gong before the announcement and regional touch control of the broadcast is the unit that allows it to be selected and made by switching. It can also be used in the same place from the broadcast center.
