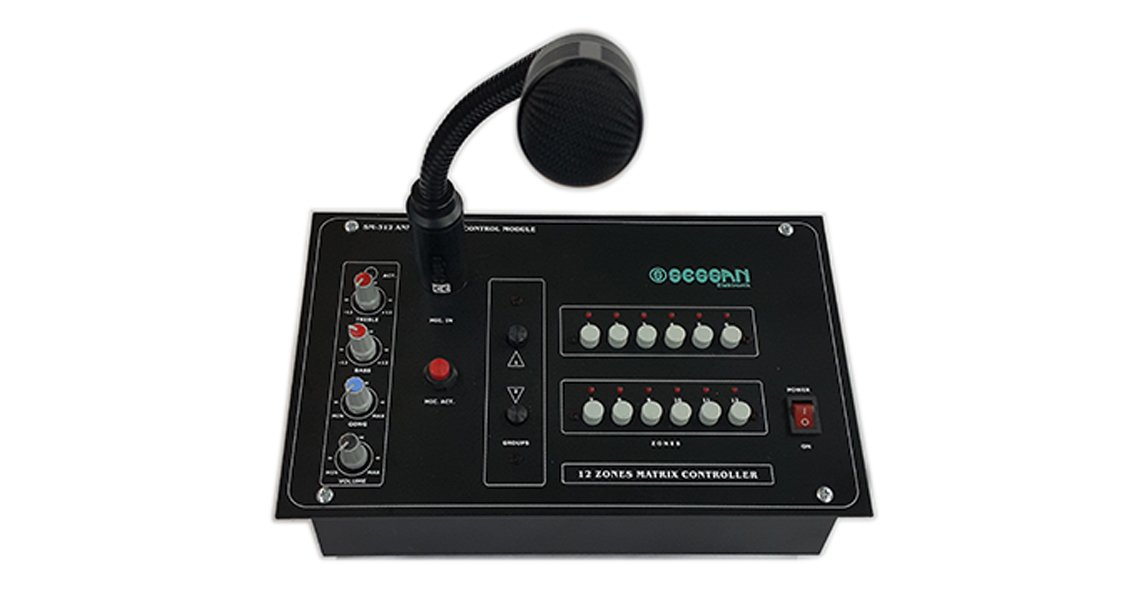

SM 312 Remote Announcement Control Module 12 Zones

zoomable
  • General Features
  • Technical Specifications
*Announcement broadcast control to 12 separate regions

*Microphone on/off switch and light

*Microphone level control

*Announcement warning gong and test button

*Bass & Treble adjustment

*On-off switch and light

Giriş                                    1 Mic. 1mV / 600ohm
Frekans Bandı                    60-18kHz.
Ton Kontrolu                       Bass 10dB 100Hz.
                                           Treble 10dB 10kHz
Besleme Gerilimi (AC)       200-240V / 50-60 Hz
Besleme Gerilimi (DC)       12V,24V
Ebat                                   90x180x340mm
Ağırlık                                3,5kg

Announcement by selecting areas far from the broadcast center such as information desk, secretariat, security, etc.

are the units that enable and control its execution. Control desk, desktop and decoupled mounted can be used.

1. The "ON/OFF" switch of the Announcement Control Module is turned on. It is observed that the led light is on.

2. Volume is adjusted from the "VOLUME" pot of the microphone.

3. "BASS" volume is adjusted according to the person who will make the announcement.

4. "TREBLE" volume is adjusted according to the person who will make the announcement.

5. Volume is adjusted from the volume pot of the gong.

6. The buttons from 1 to 12 represent 12 different zones. We want to make the announcement
By pressing the touch button of the region, announcements can be made to that region or regions. LEDs of the selected regions
lights turn on.

7. If you want to make announcements to all zones, it is enough to press "ALL" button.

8. In order to make the announcement, the microphone is activated by pressing and holding the "MIC" button. Automatically

The music is cut and a gong with a special beat sounds before the announcement. Press and hold the "MIC" button after the gong ends.

The announcement is made by continuing to hold the button. After the announcement is finished, the "MIC" button is released, Music the broadcast is automatically resumed.
