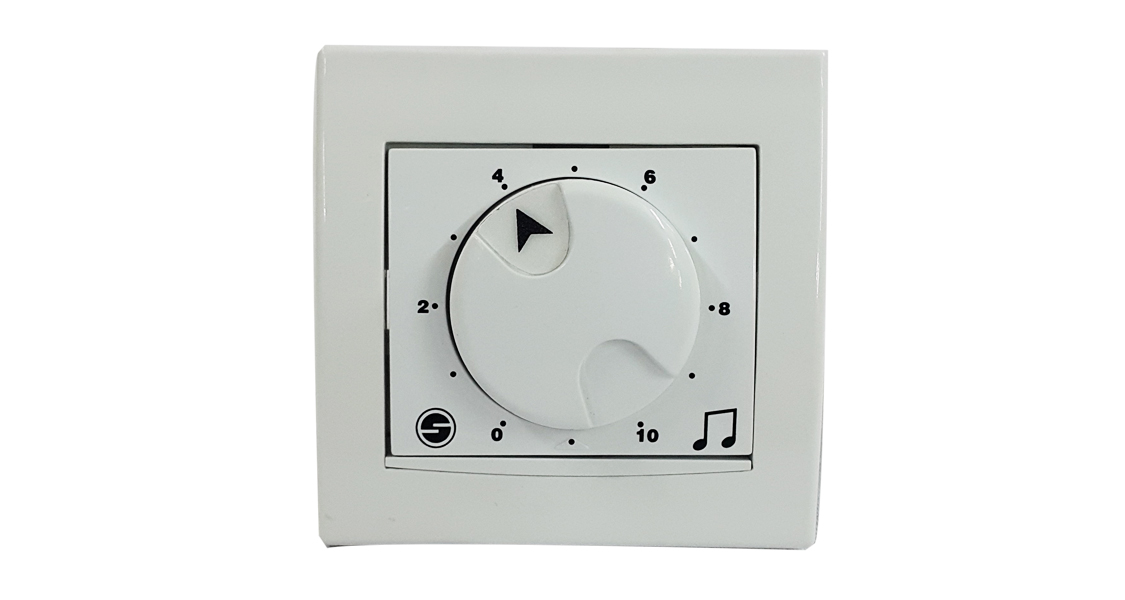

SESSAN SBAP 5W-20W Zone Adjustment Panels

zoomable
  • General Features
  • Technical Specifications

High-amplitude audio signals from the center or any sound source to certain decibel values These modules are manufactured as flush-mounted or surface-mounted in order to weaken. These modules are produced as resistive or inductive according to where they will be used.

The power of the regional adjustment panels should be 5W, 10W, 12W, 20W, 30W, 40W, 50W, 75W, 100W. The sound level adjustment of the group adjustment panels can be made in 12 different positions.

Level 0 indicates off position. The stepped volume adjustment shall be manufactured in accordance with the infinite turn principle.

A 4-position commutator is used on the channel selection panels. Channel selector and zonal adjustment panels have 4-position commutator on the compact.

Rated Power; 5W - 10W - 20W
Medicine; Flush Mounted Type
Input Voltage; 70V, 100V
Control; 11 + off-stage
Mounting diameter; 110mmx60mm
Installation Depth; 45mm
Dimensions; 148 x 80 x 42mm
