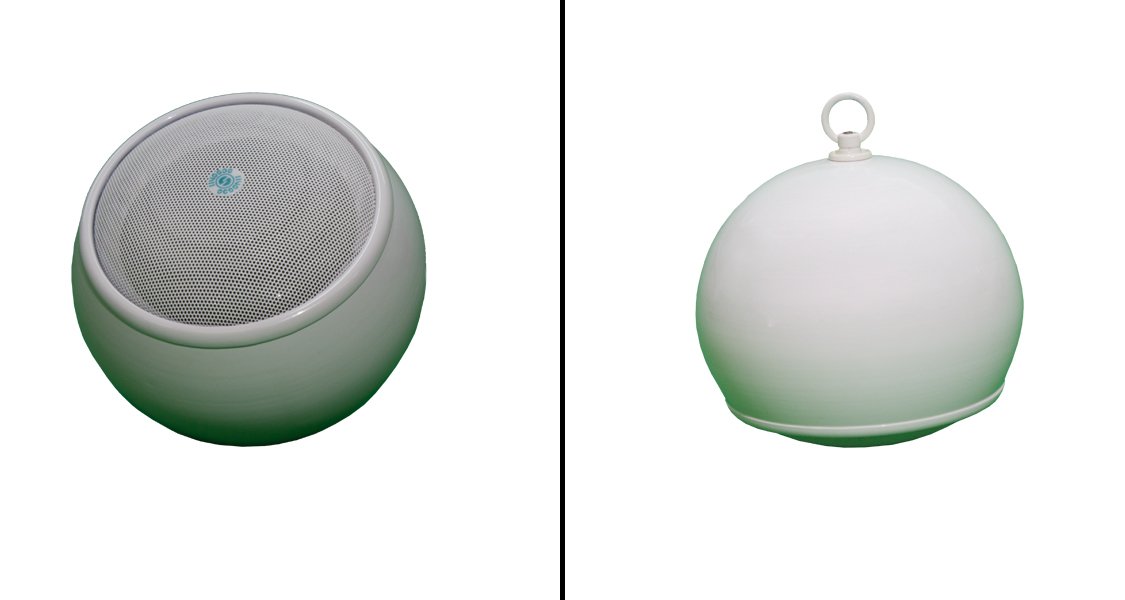

SKM 802 Projector Type Speaker

zoomable
  • General Features
  • Technical Specifications

In facilities with high ceilings and space roof construction, it is mounted with clamps or screwed to cable trays.

Rod lengths can be adjusted. The body and rods are made of aluminum material and are prepared in accordance with the ceiling color.

Speaker power and angles are selected and manufactured according to the height from the ceiling to the floor. It has a decorative design.

The loudspeaker is located in a sphere type acoustic cell, so that the speaker will be sound sealed and the sound will be free from acoustic appearances and ringing. The speaker box is completed with a sphere-shaped louver to prevent dust and debris from entering. For mounting to the cable trays on the ceiling

also apparatus are available.



  • Aluminum outer body and protection shutters made of imported wrought iron sheet
  • Electrostatic painted in desired color
  • 130mm full range type speaker
  • Line transformer in accordance with world standards
Speaker Power; Max 100W 100W/25W
Medicine; On Plaster - type wall mounted
Output Impedance; 8 ohm/1-1.5-2-5kohm 100V System
rated power; 6W-10W/100V
                                                   1kohm/15W
                                                   1.5kohm/10W
                                                   2kohm/6W
                                                   5kohm/4W
Speaker Frequency band; 120Hz-15kHz
Sensibility; 94dB (1m/1W)
Max. Sound Pressure; 100 dB (1m/max. power)
Speaker diameter; 130mm
Mounting Foot; 100mm
Sphere Diameter; 200mm
Mounting method; Sheet metal screw mounted with hanger on the plaster
