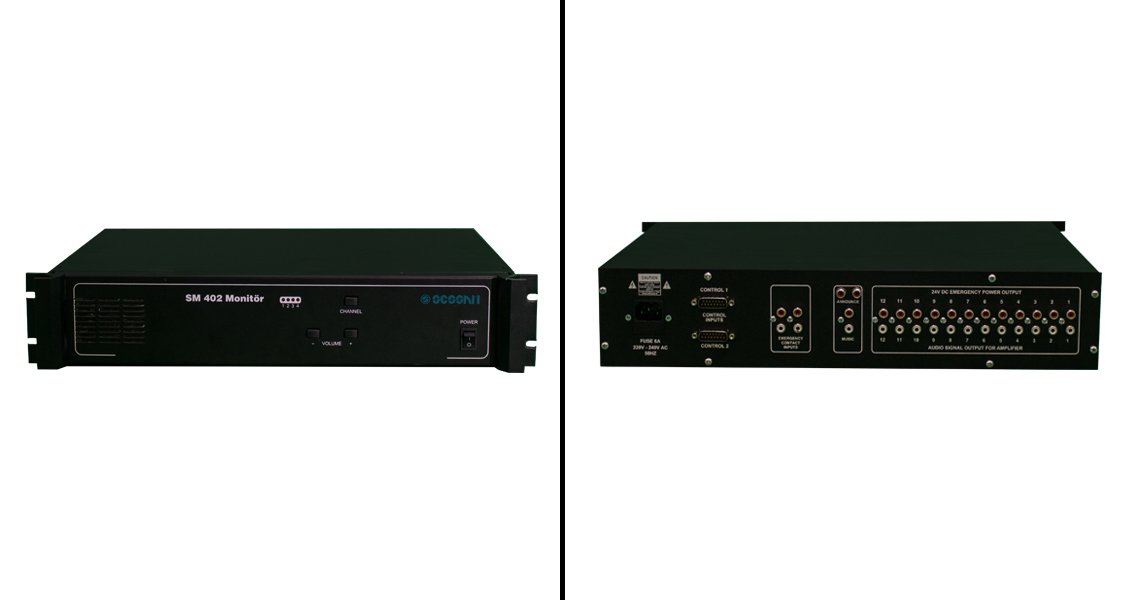

SM 402 Monitor and Distribution Module
- General Features
- Technical Specifications
Touch Channel Selection
Tuner, CD, Tape and microphone inputs
55x100 mm monitor module
On-off switch and light
Touch Volume Control
Monitor Output Power 5W
Monitor Frequency Band 60-18kHz
Supply Voltage AC 200-240V / 50-60Hz
Supply Voltage DC 12V
Size : 80x192x480mm
Weight : 4 kg
Inputs: 1 mic. 600ohm, 1mV (60dB)
Tuner, CD, Tape 12 kohm, 80mV
