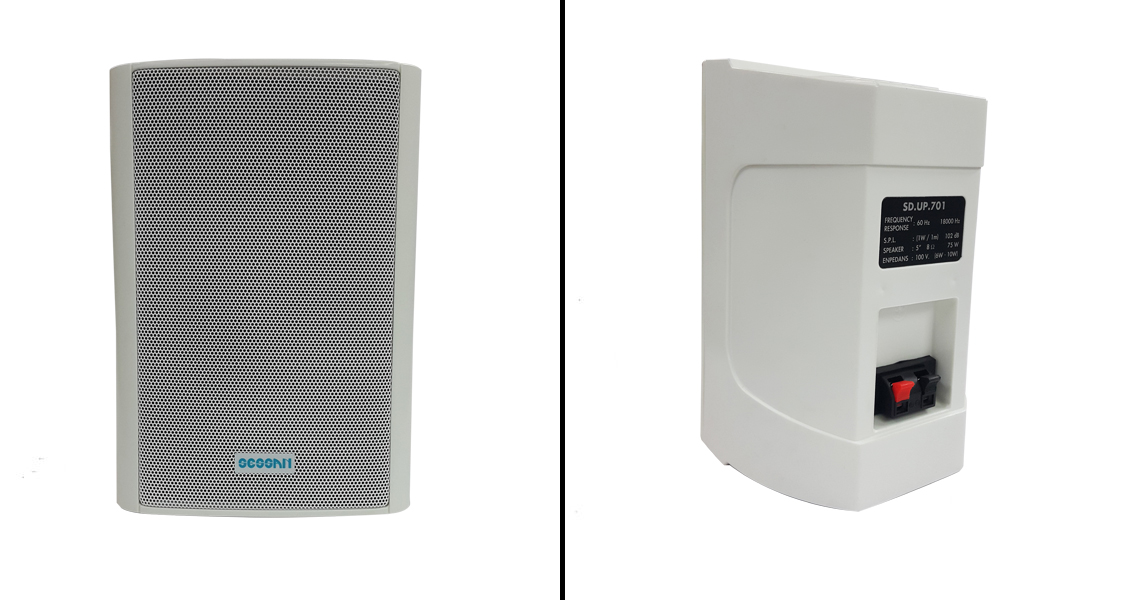

SDUP 701 Column Type Speaker

zoomable
  • General Features
  • Technical Specifications

SESSAN wall mounted loudspeakers are available in various types such as aluminum cabinet, ABS hard plastic, etc. depending on the place and purpose of use. are manufactured from materials. They are stylish and decoratively designed loudspeakers.

SDUP 501 wall mounted loudspeakers are designed to be mounted on a wall or concrete curtain, completely

closed ABS hard plastic housing, decoratively manufactured, with perforated wire mesh inside the frame.

Speakers are available in various colors. The loudspeakers are world class 100V distribution principle line with transformer. There is a 10W line transformer mounted on it. Speakers are impedance adjustable.

A fabric dust cover on the open surface to prevent dust and moisture from entering the speaker box.

coated. The speaker is a moisture resistant full range type carbon speaker. There is a hanging apparatus on it.

Speaker Power; Max 80W
Medicine; Wall Mounted - (Wall mounted)
Output Impedance; 8 ohm/1-1.5-2-5kohm 100V System
rated power; 10W/100V
                                                   1kohm/10W
                                                   1.5kohm/7W
                                                   2kohm/5W
                                                   5kohm/4W
Speaker Frequency band; 120Hz-15kHz
Sensibility; 93dB (1m/1W)
Max. Sound Pressure; 103 dB (1m/max. power)
Line Voltage; 100V
Speaker diameter; 130mm
Mounting Foot; 250mm
Dimensions; 230 x 164 x 140mm
Mounting method; The wall can be given horizontal or vertical orientation.
