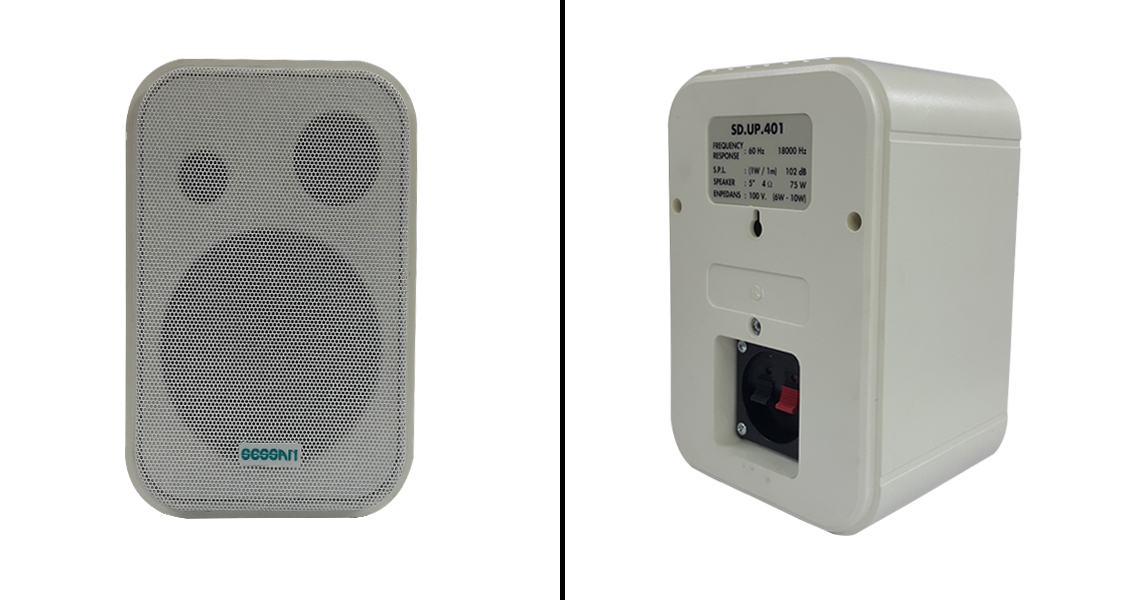

SDUP 401 Wall Mounted Speaker

zoomable
  • General Features
  • Technical Specifications

SESSAN wall mounted loudspeakers are manufactured from various materials such as aluminum cabinet, ABS hard plastic according to the place and purpose of use. They are stylish looking speakers designed to be decorative.

SDUP 401 wall mounted loudspeakers are designed to be mounted on a wall or concrete curtain.

closed ABS hard plastic body, decoratively produced, consisting of perforated wire mesh in the frame.

The speakers have a line transformer in accordance with the 100V distribution principle in world standards. There is a 6W-10W line transformer mounted on it. Speakers are impedance adjustable. A fabric dust cover is covered on the open surface to prevent dust and moisture from entering the speaker box.

The speaker is a moisture resistant full range type carbon speaker. There is a hanging apparatus on it.



Speaker Power; Max 80W
Medicine; Wall Mounted - (Wall mounted)
Output Impedance; 8 ohm/1-1.5-2-5kohm 100V System
rated power; 10W/100V
                                                        1kohm/10W
                                                        1.5kohm/7W
                                                        2kohm/5W
                                                        5kohm/4W
Speaker Frequency band; 120Hz-16kHz
Sensibility; 92dB (1m/1W)
Max. Sound Pressure; 100 dB (1m/max. power)
Line Voltage; 100V
Speaker diameter; 130mm
tweeter 25mm
Mounting Foot; 250mm
Dimensions; 220 x 150 x 130 mm
Mounting method; The wall can be given horizontal or vertical orientation.
