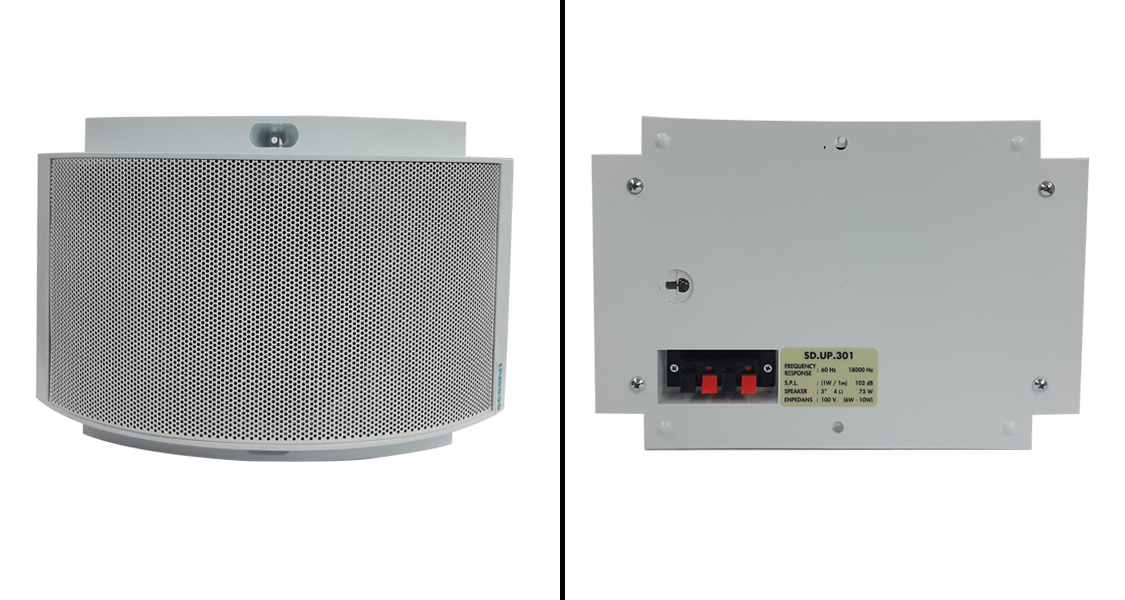

SDP 301 Hemispherical Speaker

zoomable
  • General Features
  • Technical Specifications

SESSAN surface mounted speakers are manufactured from various materials such as aluminum cabinet, ABS hard plastic according to the place and purpose of use. They are stylish and decoratively designed loudspeakers.

SDP 301 hemispherical design Surface mounted speakers are designed to be mounted on the ceiling, wall or concrete curtain. designed, fully enclosed ABS hard plastic body, decoratively produced, with perforated wire inside the frame made of mesh. The speakers are available in 2 colors, black and white. Speakers world It has a line transformer suitable for 100V distribution principle in standards. 6W line mounted on it transformer is available. Speakers are impedance adjustable.

The speaker is a moisture resistant full range type carbon speaker.

Speaker Power; Max 100W
Medicine; Wall Mounted - (Wall mounted)
Output Impedance; 8 ohm/1-1.5-2-5kohm 100V System
rated power; 10W/100V
                                                1kohm/10W
                                                1.5kohm/6W
                                                2kohm/5W
                                                5kohm/4W
Speaker Frequency band; 120Hz-15kHz
Sensibility; 93dB (1m/1W)
Max. Sound Pressure; 103 dB (1m/max. power)
Line Voltage; 100V
Speaker diameter; 130mm
Dimensions; 299 x 197 x 83mm
Mounting method; It can be mounted horizontally or vertically on the wall and ceiling.
