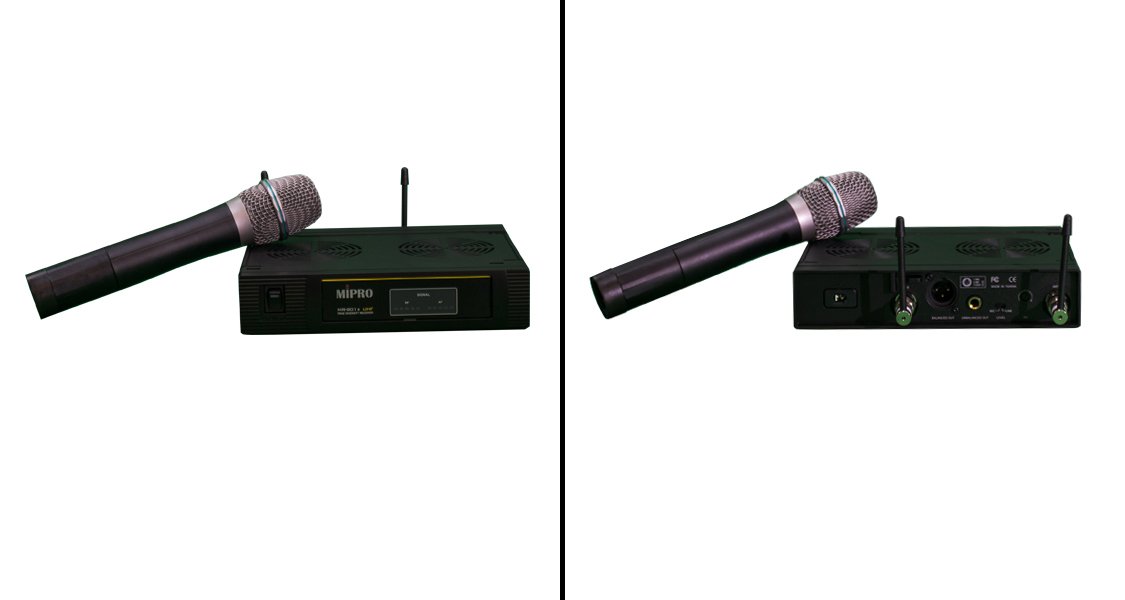

Mipro mr 801
- Genel Özellikleri
- Teknik Özellikleri
Main Frame Size EIA standard 1/2-rack unit
Oscillation Mode Phased-lock Loop (PLL) technology
Stability ±0.005% (-10~50℃)
Carrier Frequency Range UHF 780~930MHz
Sensitivity S/N>70dB@10dBμV input
Max. Deviation Range ±68KHz
T.H.D. <0.5% @ 1KHz
Frequency Response 60Hz~18KHz, equipped high-pass filter circuitry
Maximum Output Level Mic-level: -14dBV/47Ω, Line-level: -4dBV/5KΩ
Squelch "NoiseLock" squelch circuit
Power Supply AC , 0.5A, 12~15V DC
Dimensions 210(W)×44(H)×170(D)mm
Weight 0.65kg
